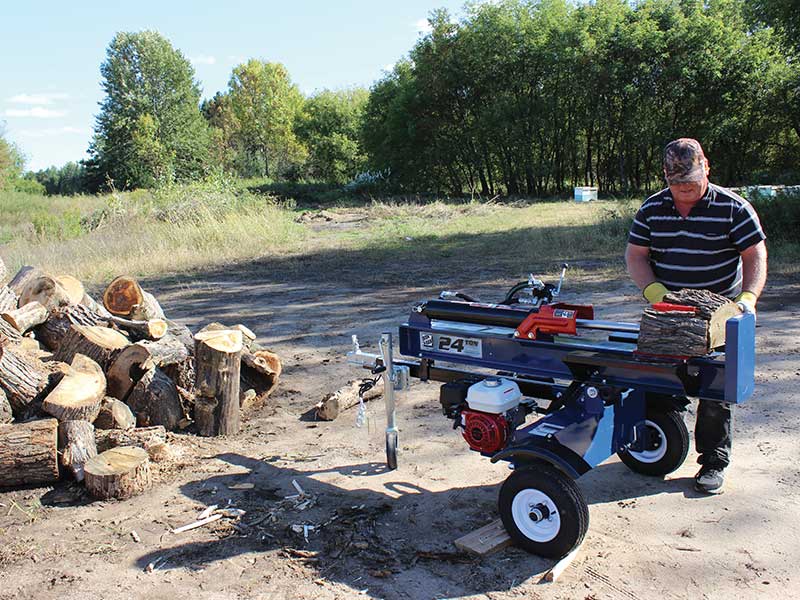

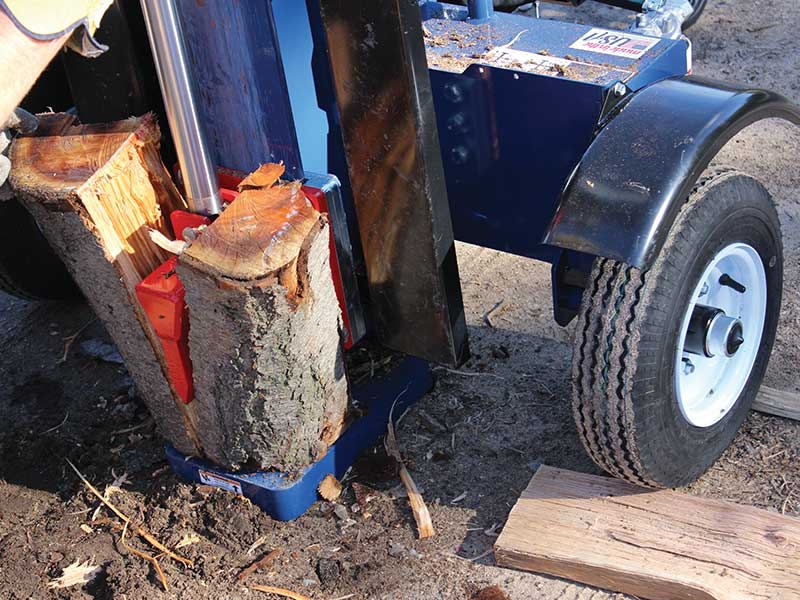

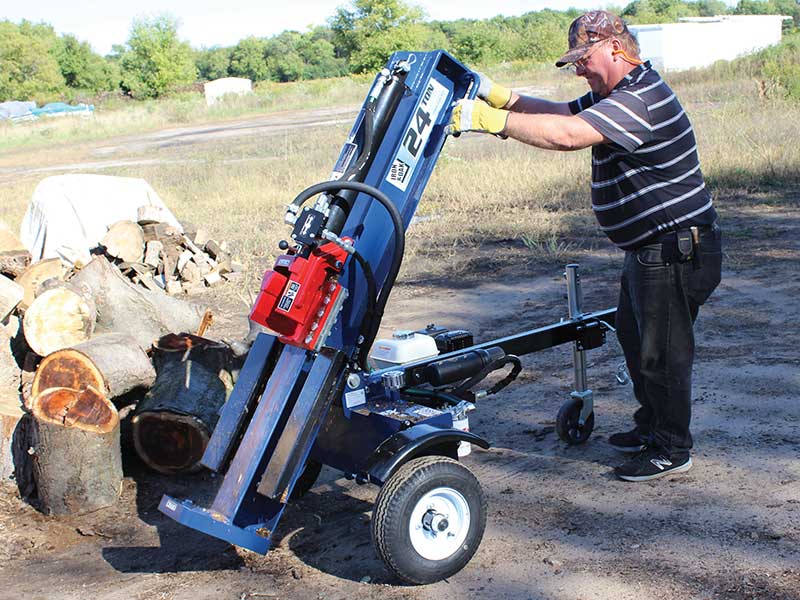

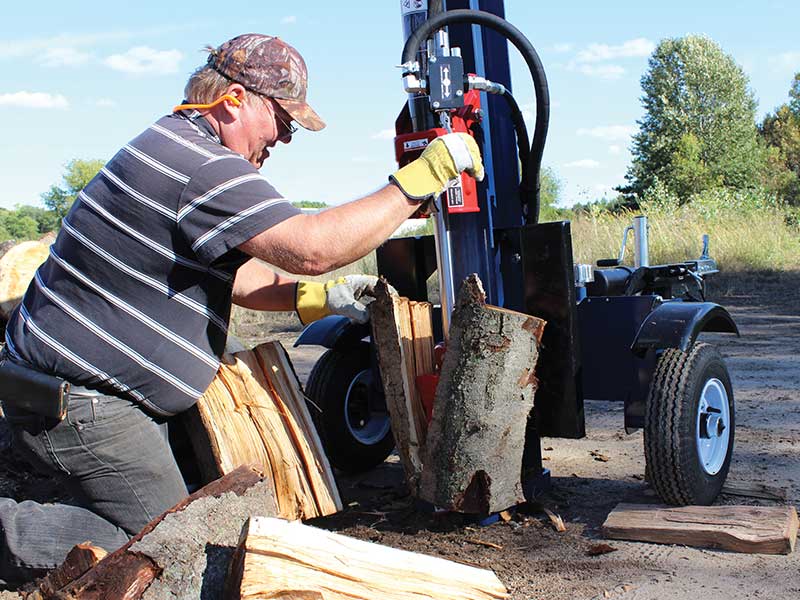

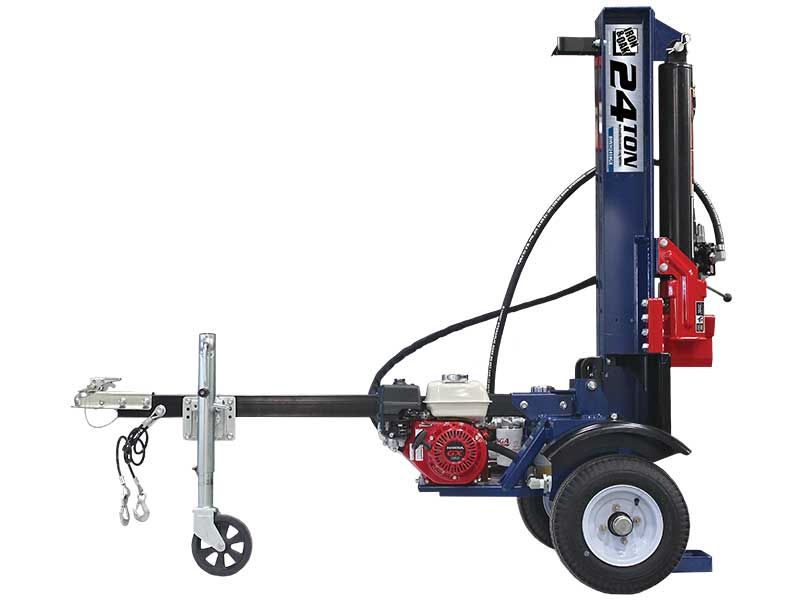

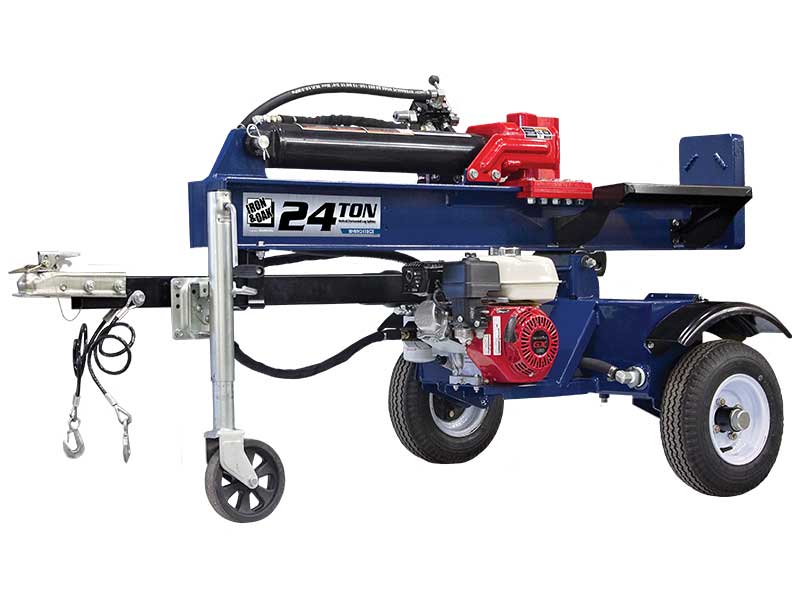

24 Ton Vertical/Horizontal Log Splitter BHVH2418GX
Couldn't load pickup availability
|
• Auto latch system for safe towing |
|
• Service friendly design for checking hydraulic fluid |

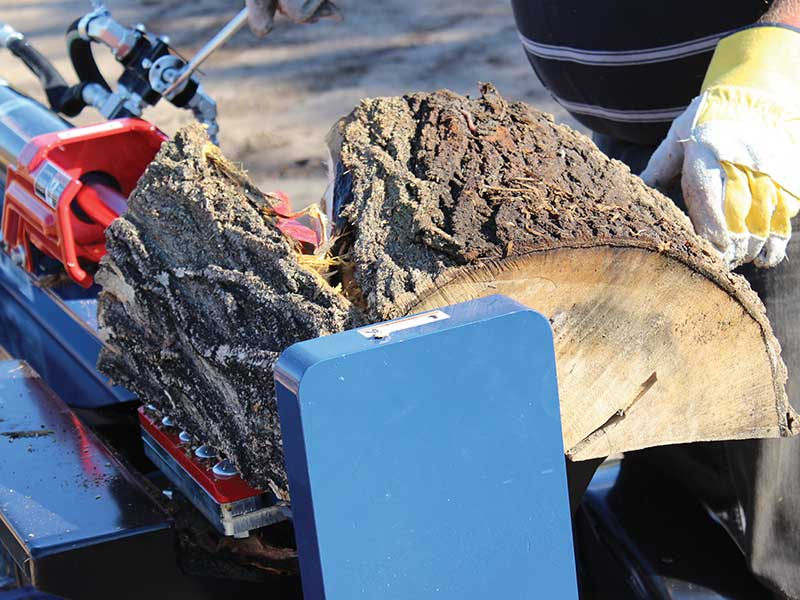

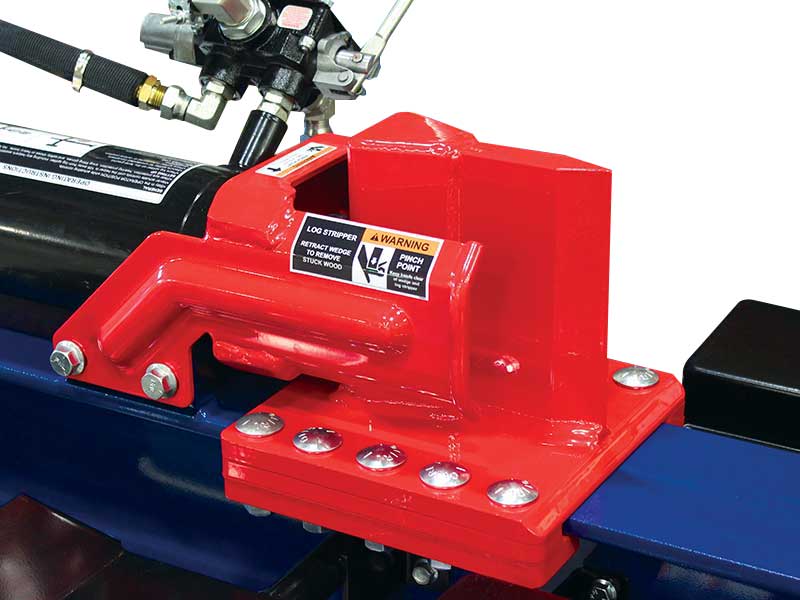

| • Heavy-duty wedge features five bolts per side |
| • Heavy-duty log cradle, fenders and engine mount |
| • 4-stage hydraulic filtration system |
| • Heavy-duty crank down wheel jack for easy moving |
| • Halite commercial cylinder seals for consistent pressure |
| • Long lasting powder coat finish |

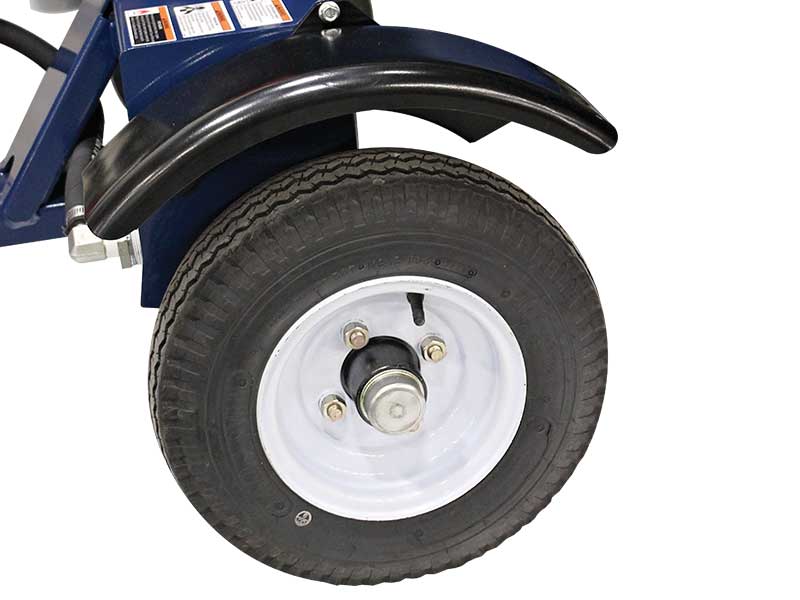

| • Heavy-duty 4 bolt trailer hubs for towing |
|
• Offset valve for better operator positions |
|
• Tow cables included |
| • 2" hitch coupler |
| • Heavy-duty 2" x 3" box tube tongue |
***FREE SHIPPING***
There will be a $100 liftgate fee if required for unloading.

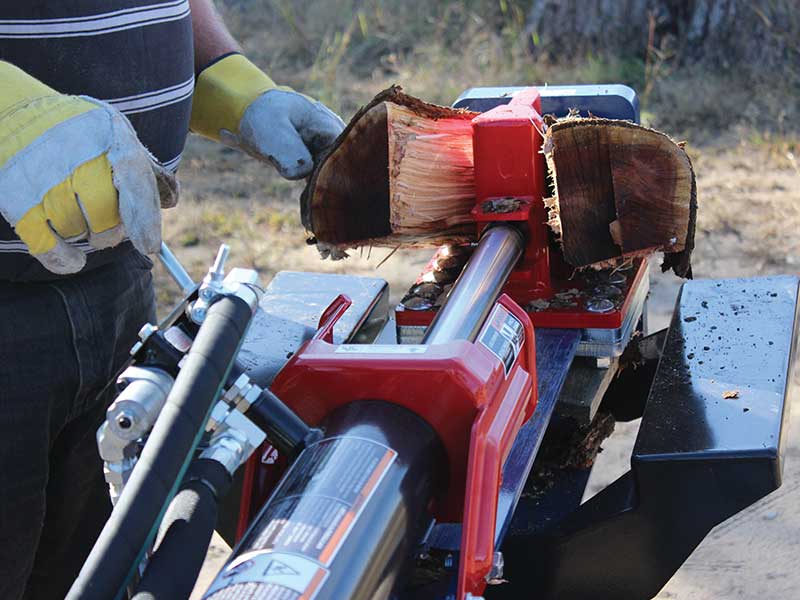

| Cylinder | 4" X 24" clevis type, 1.75" rod |
| Valve | 3 position with auto return |
| Pump | 11 GPM HI-LO 2 Stage |
| Hydraulic Tank | 9.0 Gallons System Total |
| Hydraulic Capacity | 10.0 Gallons System Total |
| Engine |
Honda GX160 |
| Displacement |
163cc |
| Bed Height |
32" |
| Beam |
6" Heavy-Duty Formed Steel |
| Tires |
4.8" x 8.0" Highway Rated |
| Log Opening |
25" |
| Cycle Time |
Approx. 13 Seconds Complete Cycle |
| Splitting Force |
Approx. 24 tons |
| Weight |
675 lbs |
